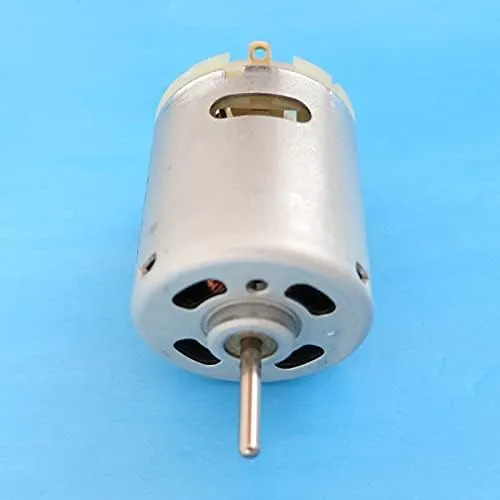

(1) Motor length: 32.5mm
(2) Motor diameter: 27.5mm
(3) Shaft diameter: 2.3 mm
(4) Axis length: 12mm
(5) Voltage range: 6-12V
(6) current and speed test:
6V voltage, the speed of 2000 per minute, no-load current 50ma, stall current 0.31A
12V voltage, the speed of 5000 per minute, no-load current 50ma, stall current 0.55A
(7) Screw for fixing hole: M2.5
(8) Pitch: 16mm
Item specifics:
Torque: as description
Usage: Home Appliance
Model number: 365
Output power: as description
Continuous current(a): as description
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Gear Motor
Certification: CCC
Origin: Mainland China
Voltage(v): 12v
