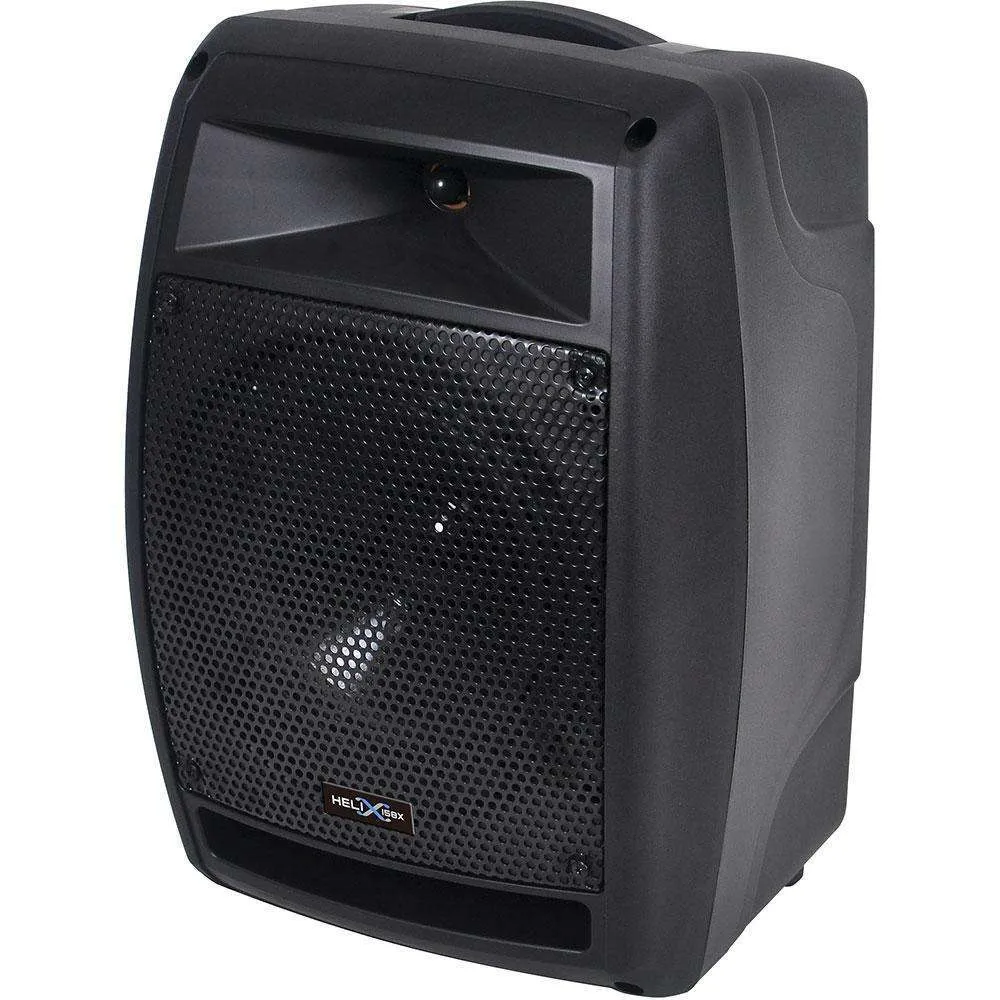

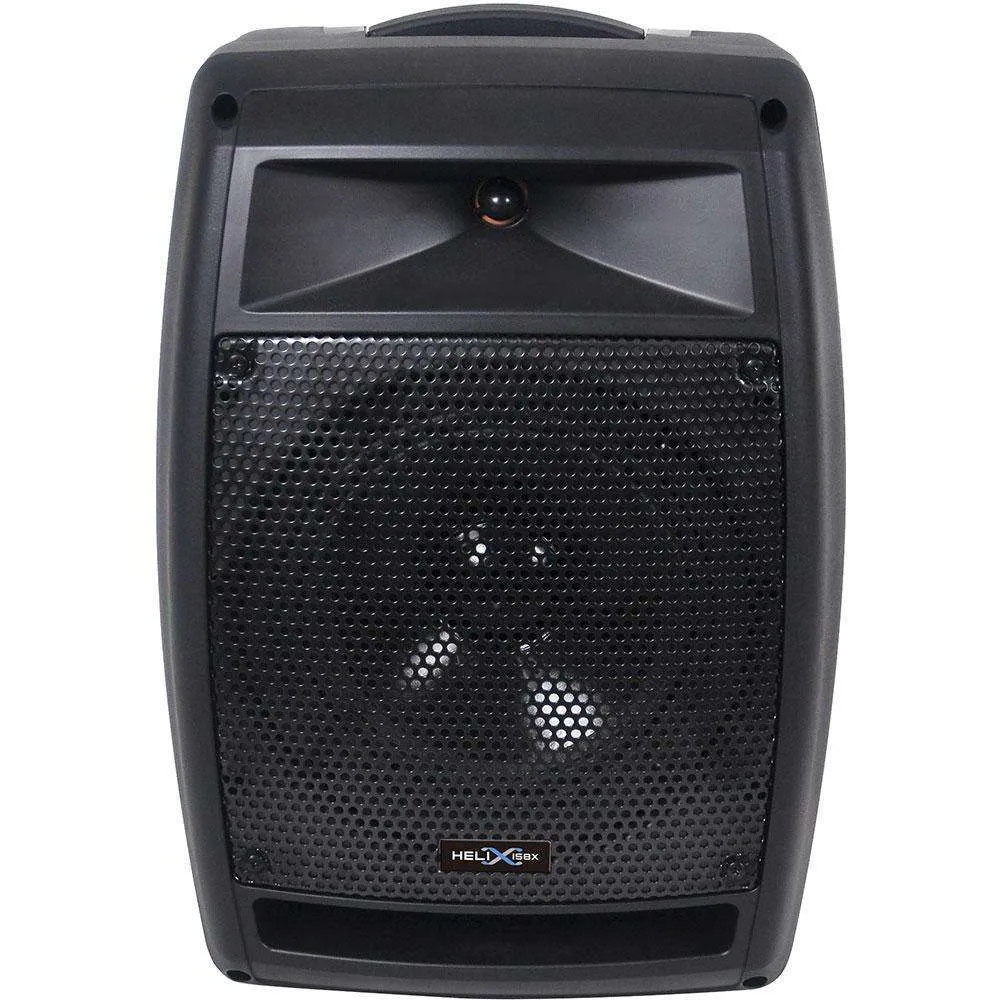

The new Parallel Audio HELIX-158X is a 150 watt (100 watt RMS) 8″ full range, portable PA system with built-in Bluetooth/SD/USB Player Recorder.
All models of the Helix 158X include Bluetooth/SD/USB player and recorder.
You can option your Parallel Audio HELIX-158X with any or all of the following options:
- One or two UHF wireless receivers
- A wireless repeater
- A combination of up to 2 handheld wireless microphones and/or bodypacks with lapel or headset microphone
It is important when ordering this system with any of the wireless options, that you message us with the area that you intend to use it, so we can send you the correct frequency band for your area!
We have the following systems available for purchase online, but please contact us if you would like a price on a different configuration or any of the aforementioned options. Over the years we have found the fourth option to be very popular in particular with marriage celebrants.
- Basic Helix 158X PA with no wireless

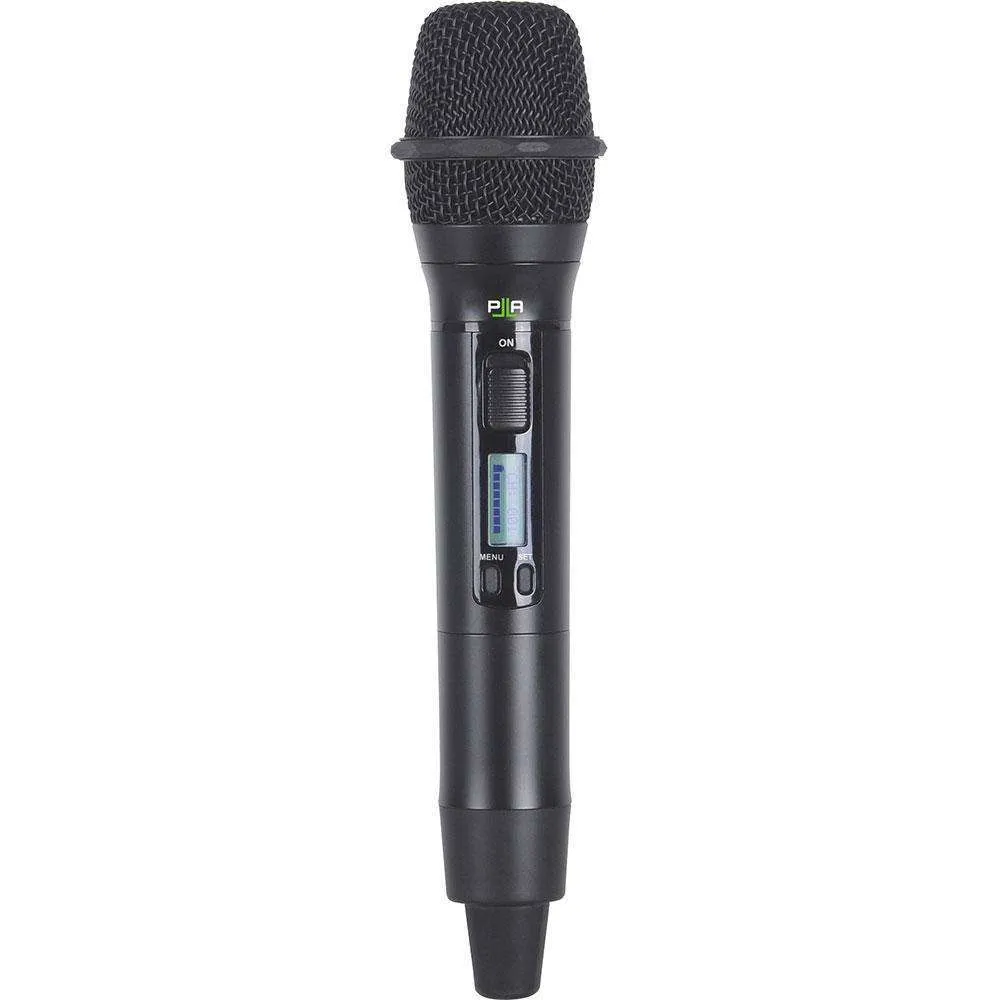

- Helix 158X with 1 x wireless receiver & 1 x handheld wireless microphone
- Helix 158X with 2 x wireless receivers & 2 x handheld wireless mics

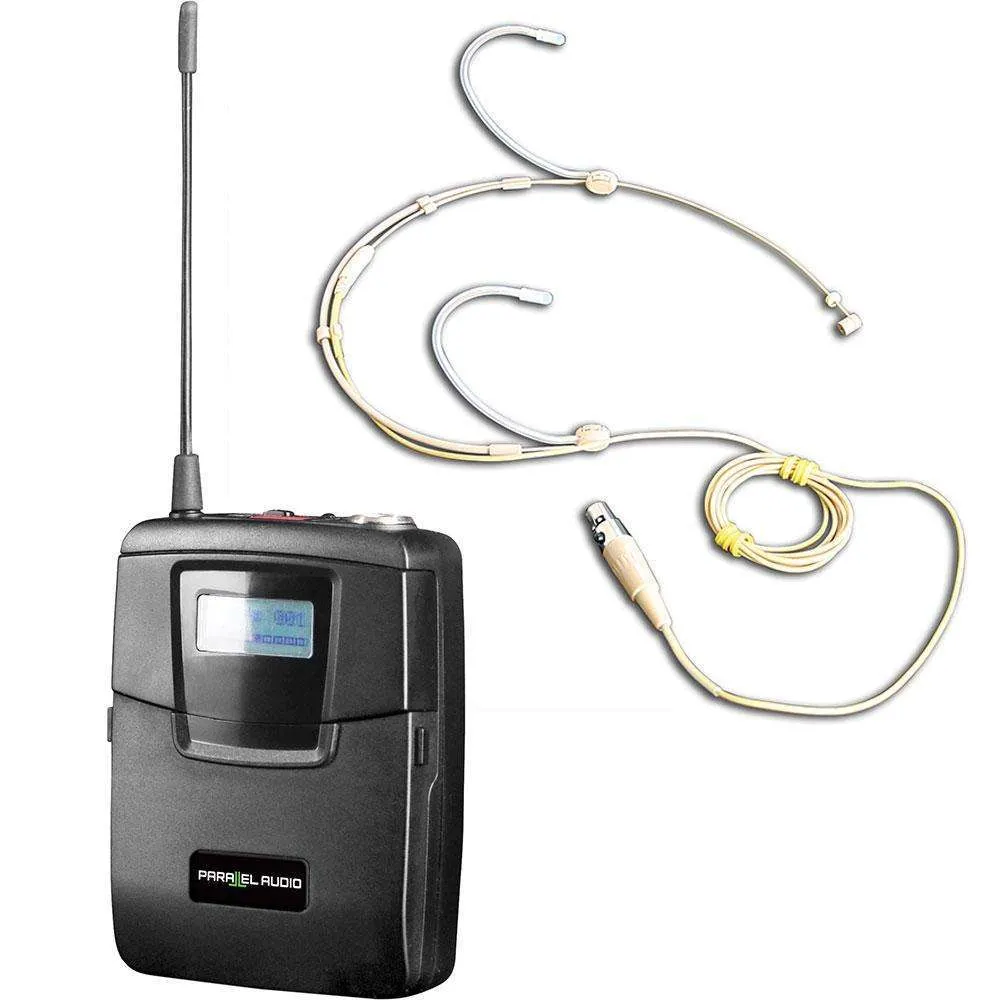

- Helix 158X with 2 x wireless receivers & 1 x handheld wireless microphone, 1 x bodypack and slimline tan headset.
Please contact us if you would like to learn more or get a quote for a different configuration that isn't listed here, or any of the aforementioned options.
Every Helix 158X unit comes shipped standard with a dust cover with pockets for accessories and transmitters and a clear see-through rear panel so you can still use the Helix 158X with the cover on!
Warranty: 5 Years (Special Conditions 12 months on CD players digital recorders cassette decks etc. 3 months on batteries)

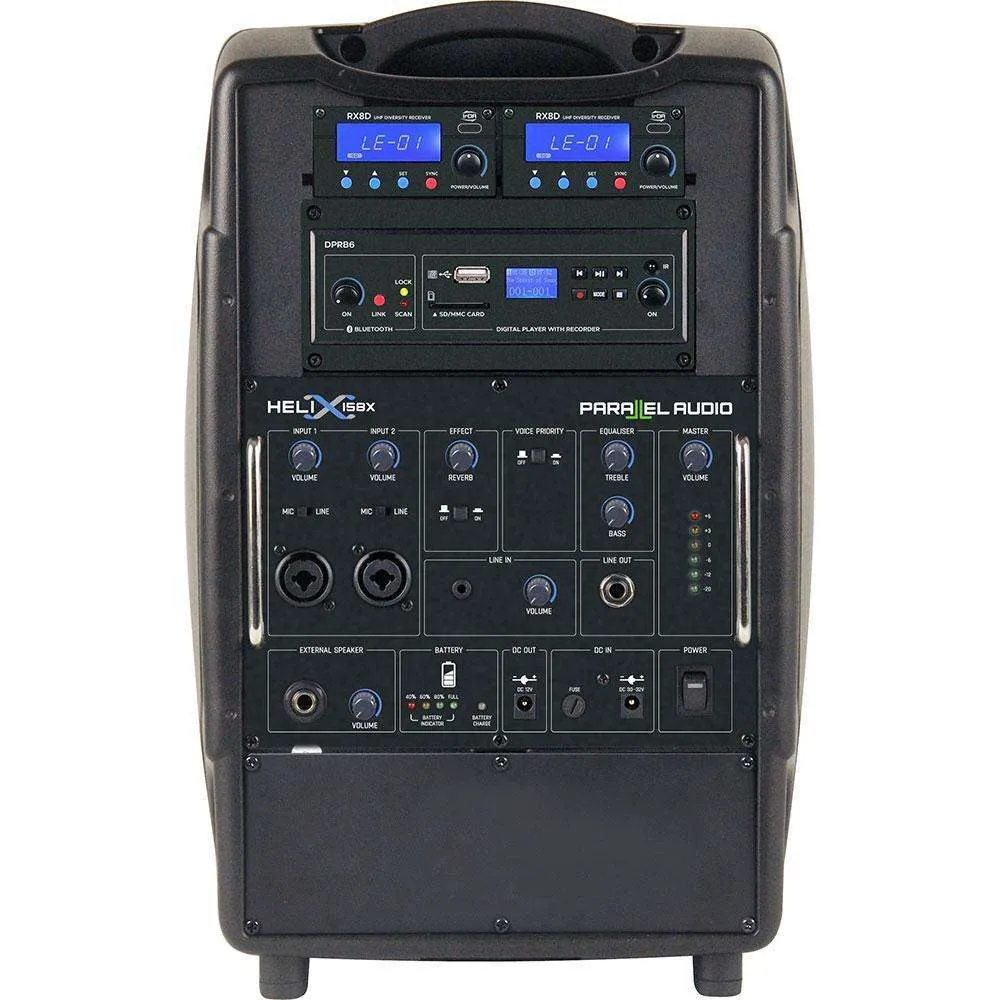

Features
- Includes Class-D digital power amplifier delivering 100W to the internal 8” full range speaker and 100W to an external speaker.
- 2 power modes: Internal Rechargeable battery & DC jack.
- Up to 6 hours with Lead-Acid battery.
- User friendly battery compartment design for simple battery replacement.
- High efficiency system; compact cabinet and efficient 8” full range speaker for live performance.
- Optional CD/USB/SD/Digital video player modules (including remote control) and a digital recorder/player module.
- Up to 4 diversity receiver modules with 100/16 selectable frequencies in each system (optional).
- Automatic Digital limiter with 6 LED indicators prevents output distortion.
- 2-band equaliser, BASS/TREBLE and MASTER volume control.
- AUX OUT (6.3mm jack) for external audio recording.
- LINE IN (3.5mm jack) with individual volume control.
- MICROPHONE 1 and 2 are XLR/6.3mm combo jack connectors
for wired microphone inputs with individual volume control and a MIC/LINE level switch. - REVERB control for wired and wireless microphones.
- AUX OUT (6.3mm jack) and SPEAKER OUT (6.3mm jack) for external passive speakers.
- Smart charging circuit with 4-step LED battery indicators and charging LED.
- Tripod stand mountable with HX-ST.
Specifications
- Output power: 150W, 100W (RMS) 4Ω load (class-D)
- Speaker system: 8” full range
- Audio input: Mic in x 2 (COMBO), Line in (3.5mm)
- Audio output: Aux out, External speaker
- T.H.D.: < 0.5%
- Frequency response: 50Hz-20KHz±3dB
- Antenna: Built-in
- Power supply: 100-240V AC / 30-32V DC, 4A
- Battery type: Lead-Acid
- Battery specifications: 12V, 5Ah
- Battery quantity: 2
- Battery Indicator: 4 LED indicators
- Operating time: 5-6 hrs in music, >10 hrs in speech
- Charging time: about 6 hrs
- Dimensions (mm): 424 (H) x 290 (W) x 250 (D)
- Weight (kg): 10.8
* NOTE: The above specifications are subject to change without prior notice.
